Complete the assembly

Washers & gaskets

Supporting hardware and gasket requirements coordinated with your fastener package.

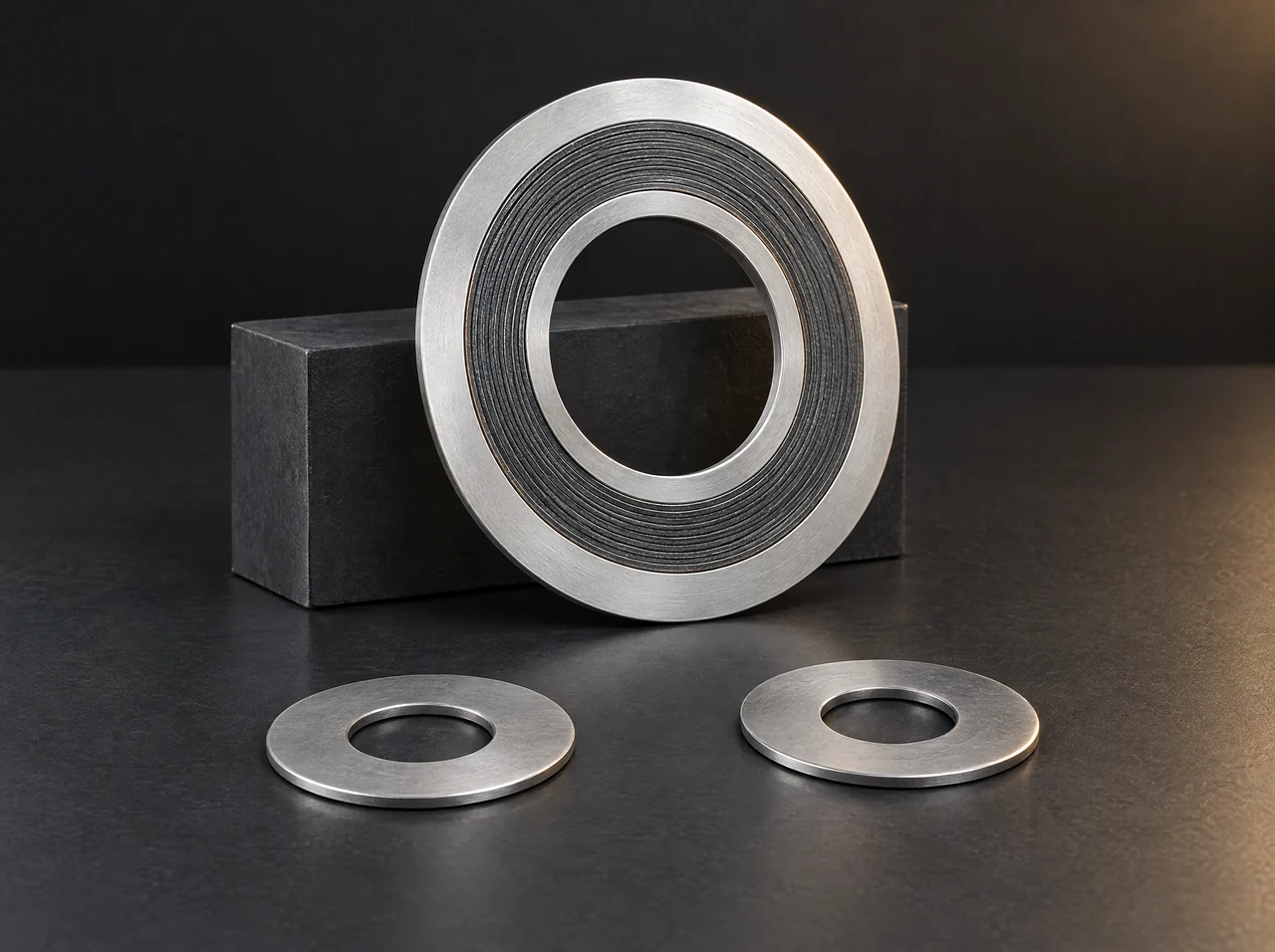

Washers & gaskets
Representative product configuration.
Manufacturing overview

Washers & gaskets, defined by the order.

Cyclone’s published product offering includes washers, gaskets, and supporting hardware. Include these components in your RFQ alongside the bolting bill of materials, with the exact construction and material requirements for each item.

WashersGasketsAssembly requirements
  • Include dimensions and the applicable standard
  • Specify material, thickness, and surface treatment
  • Gasket selection remains with the responsible engineer

Specify material grade and condition, dimensions, thread series/class, quantity, finish, required delivery, and documentation.

Washers & Gaskets

Define the part. Align the requirement.

Complete the fastening package with the washers, gaskets and supporting hardware listed on your assembly bill of materials. Cyclone coordinates these requirements with the bolting inquiry so procurement can review the complete package, delivery schedule and documentation together.

Washer dimensions

Provide the inside diameter, outside diameter, thickness, configuration and dimensional standard. Identify any required hardness, material grade or surface finish.

Gasket offering

Cyclone’s published gasket line covers 1/4" through 72" diameters: spiral wound gaskets in stainless and exotic alloys, cut gaskets in PTFE and neoprene, API ring joint gaskets and flange isolation kits.

Gasket construction

Identify the gasket standard, style, size, thickness and material construction. Include flange or assembly identification and the approved part number where applicable.

Size and material selection

Sizes and materials are reviewed against the specified assembly. Selection of gasket construction and application suitability remains with the customer or responsible engineer.

Package and documentation

List quantities by line item and identify matched sets, finish requirements, material certification and packaging or labeling instructions. Confirm availability and delivery with Cyclone.

Questions before you quote

Can washers and gaskets be quoted with a stud assembly?

Yes. Include every component as a separate RFQ line with its quantity, material, dimensions and required documentation.

Will Cyclone select a gasket for the service?

The responsible engineer must specify the gasket and confirm application suitability. Cyclone can review the supplied product requirements and sourcing scope.

Which washer or gasket sizes are stocked?

Ask the team about current availability for your exact part. This page does not represent a live inventory list or a guaranteed size range.

Washers and gaskets explained

The rest of the bolted joint.

A bolted flange joint is studs, nuts, washers where the specification calls for them, and a gasket. Cyclone Bolt quotes washers and gaskets on the same RFQ as the bolting, so the whole package is reviewed together.

ComponentWhat it isStandard that covers it
Hardened washerHardened steel washer used under a nut or bolt headASTM F436
Spiral wound gasketMetal strip and soft filler wound togetherASME B16.20
Ring joint gasketSolid metal ring that seats in the grooves of a ring-type-joint flangeASME B16.20

Reference only. The current edition of each standard governs your order.

Washer and gasket questions

What is a hardened washer?

A hardened washer is a heat-treated steel washer that gives a nut or bolt head a hard, flat bearing surface. ASTM F436 covers hardened steel washers.

What is a spiral wound gasket?

A spiral wound gasket is made by winding a metal strip and a soft filler material together. Dimensions for pipe flanges are in ASME B16.20.

What is a ring joint gasket?

A ring joint gasket is a solid metal ring that seats in the machined grooves of a ring-type-joint flange. ASME B16.20 covers it.

What gaskets does Cyclone Bolt supply?

Cyclone’s published gasket line covers 1/4 in. through 72 in. diameters: spiral wound gaskets in stainless and exotic alloys, cut gaskets in PTFE and neoprene, API ring joint gaskets and flange isolation kits.

Can studs, nuts, washers and gaskets be ordered together?

Yes. List each component as its own RFQ line with its quantity, material, dimensions and required documentation.

Where is Cyclone Bolt located?

Cyclone Bolt manufactures in Houston, Texas, at 11330 Tanyard Creek Drive. Every order is quoted: request a quote, call 281-372-6050 or email inquiry@cyclonebolt.com.
