Companion hardware

Heavy hex nuts

A194 2H, Grade 8, and Grade 8M heavy hex nuts, with plain and specified finish options.

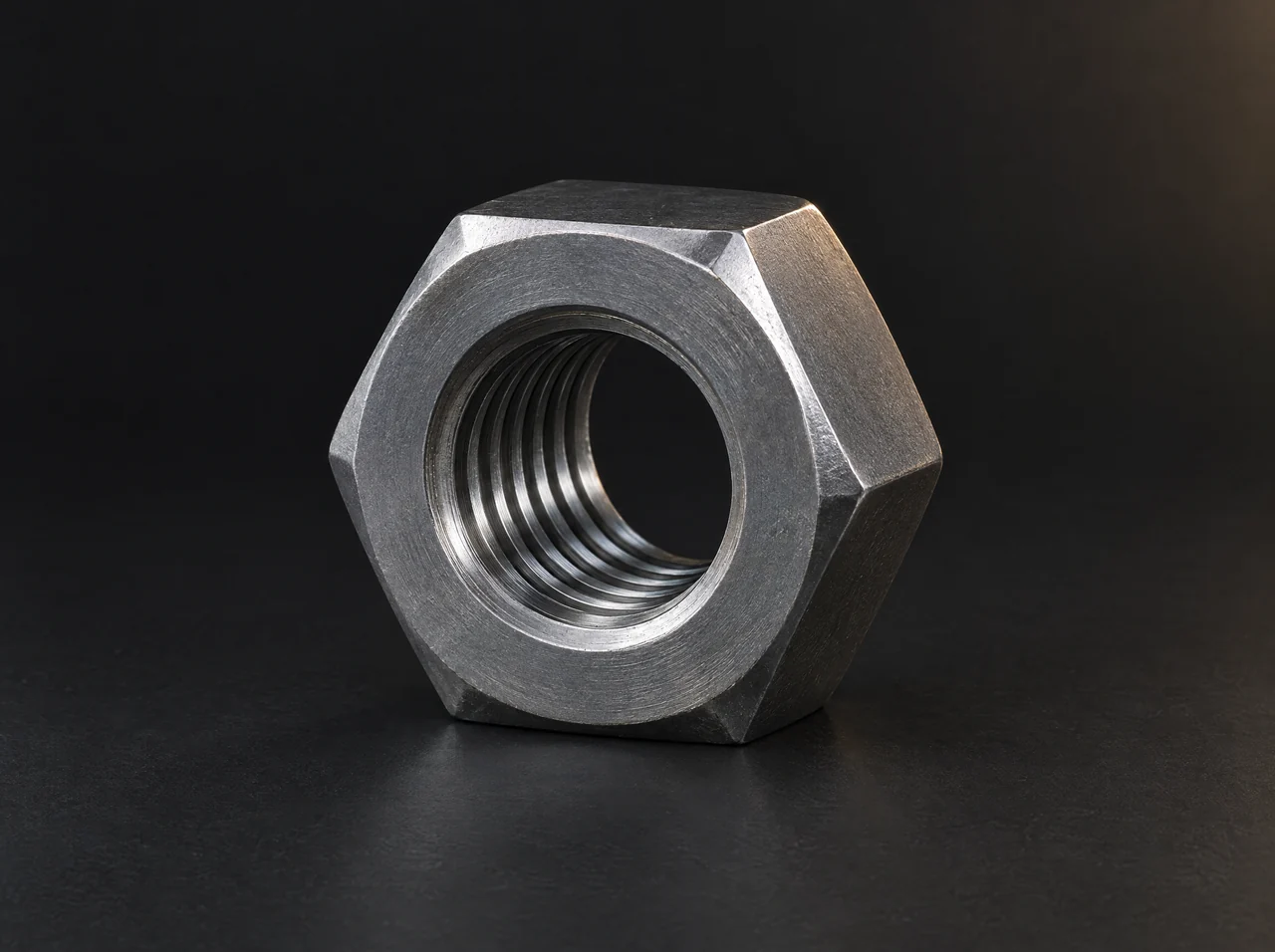

Heavy hex nuts
Representative product configuration.
Manufacturing overview

Heavy hex nuts, defined by the order.

Complete your bolting requirement with heavy hex nuts specified for the assembly. The catalog includes alloy steel and stainless grades. Confirm material compatibility, strength requirements, thread class, and coating allowance in the order requirements.

A194 2HA194 Grade 8A194 Grade 8M
  • Plain 2H, Grade 8, and Grade 8M listings
  • TFE blue and cadmium-plated 2H options
  • Thread series, dimensions, and finish to specification

Specify material grade and condition, dimensions, thread series/class, quantity, finish, required delivery, and documentation.

Product specifications

Heavy hex nut range

DetailAvailable range
GradesA194 2H, 2HM, Grade 7, 7M, Grade 8, 8M, 8A and 8MA
A194 2H finishesPlain, TFE blue, cadmium plated
Diameter5/8" through 4"
DimensionsTo the customer’s specification
Heavy Hex Nuts

Define the part. Align the requirement.

Heavy hex nuts should be specified as part of the complete bolted assembly. Cyclone’s published catalog includes ASTM A194 2H, Grade 8 and Grade 8M configurations. State the companion stud or bolt, required thread fit and finish so the team can review matching hardware and documentation.

Published grades

A194 2H, Grade 8 and Grade 8M appear in the catalog. Identify the required grade, class or condition and the governing specification revision in the order.

Diameter range

Heavy hex nuts are available in nominal diameters from 5/8 inch through 4 inches. Provide the required dimensions, grade and quantity with the RFQ; the team confirms availability and delivery.

Finish options

Published 2H listings include plain, TFE blue and cadmium-plated options. Specify the complete finish requirement and any thread allowance or inspection requirements.

Receiving requirements

Identify required marking, material reports, lot traceability, thread gaging and packaging. Nut and stud compatibility must follow the responsible engineer’s assembly specification.

Questions before you quote

Can nuts be supplied as part of a stud set?

Yes. Identify the stud specification and number of nuts per set, then list material, finish and documentation requirements for each component.

Are Grade 8 and Grade 8M the same nut?

They are separate A194 grade designations. Order the exact grade, class and condition required by the assembly specification; do not substitute on appearance.

Does the range table show live stock?

No. The table summarizes the product range. The team confirms availability, order quantity and delivery during quote review.

Heavy hex nuts explained

What a heavy hex nut is.

A heavy hex nut is wider across the flats and thicker than a standard hex nut of the same thread size. Inch-series dimensions are set by ASME B18.2.2, and ASTM A194 covers the grades used with pressure and high-temperature bolting. Cyclone Bolt supplies heavy hex nuts from 5/8 in. through 4 in.

Nut gradeUsual companion stud
ASTM A194 Grade 2HASTM A193 Grade B7
ASTM A194 Grade 2HMASTM A193 Grade B7M
ASTM A194 Grade 8ASTM A193 Grade B8
ASTM A194 Grade 8MASTM A193 Grade B8M

Reference only. The assembly specification on your order governs the pairing.

Heavy hex nut questions

What is a heavy hex nut?

A heavy hex nut is wider across the flats and thicker than a standard hex nut of the same thread size. Inch-series dimensions are in ASME B18.2.2.

What is an A194 2H nut?

ASTM A194 Grade 2H is a quenched and tempered carbon steel heavy hex nut. It is the standard companion to ASTM A193 B7 studs.

Which nut goes with which stud?

A194 2H with A193 B7, 2HM with B7M, Grade 8 with B8 and Grade 8M with B8M are the usual pairings. The assembly specification on the order governs.

What sizes of heavy hex nuts does Cyclone Bolt supply?

Nominal diameters from 5/8 in. through 4 in., in ASTM A194 2H, 2HM, Grade 7, 7M, Grade 8, 8M, 8A and 8MA.

What finishes are available on 2H nuts?

Cyclone lists A194 2H nuts plain, TFE blue and cadmium plated.

Where is Cyclone Bolt located?

Cyclone Bolt manufactures in Houston, Texas, at 11330 Tanyard Creek Drive. Every order is quoted: request a quote, call 281-372-6050 or email inquiry@cyclonebolt.com.
