All-thread bolting

Stud bolts

ASTM A193 B7 stud assemblies, with material, length, finish, and documentation specified for your order.

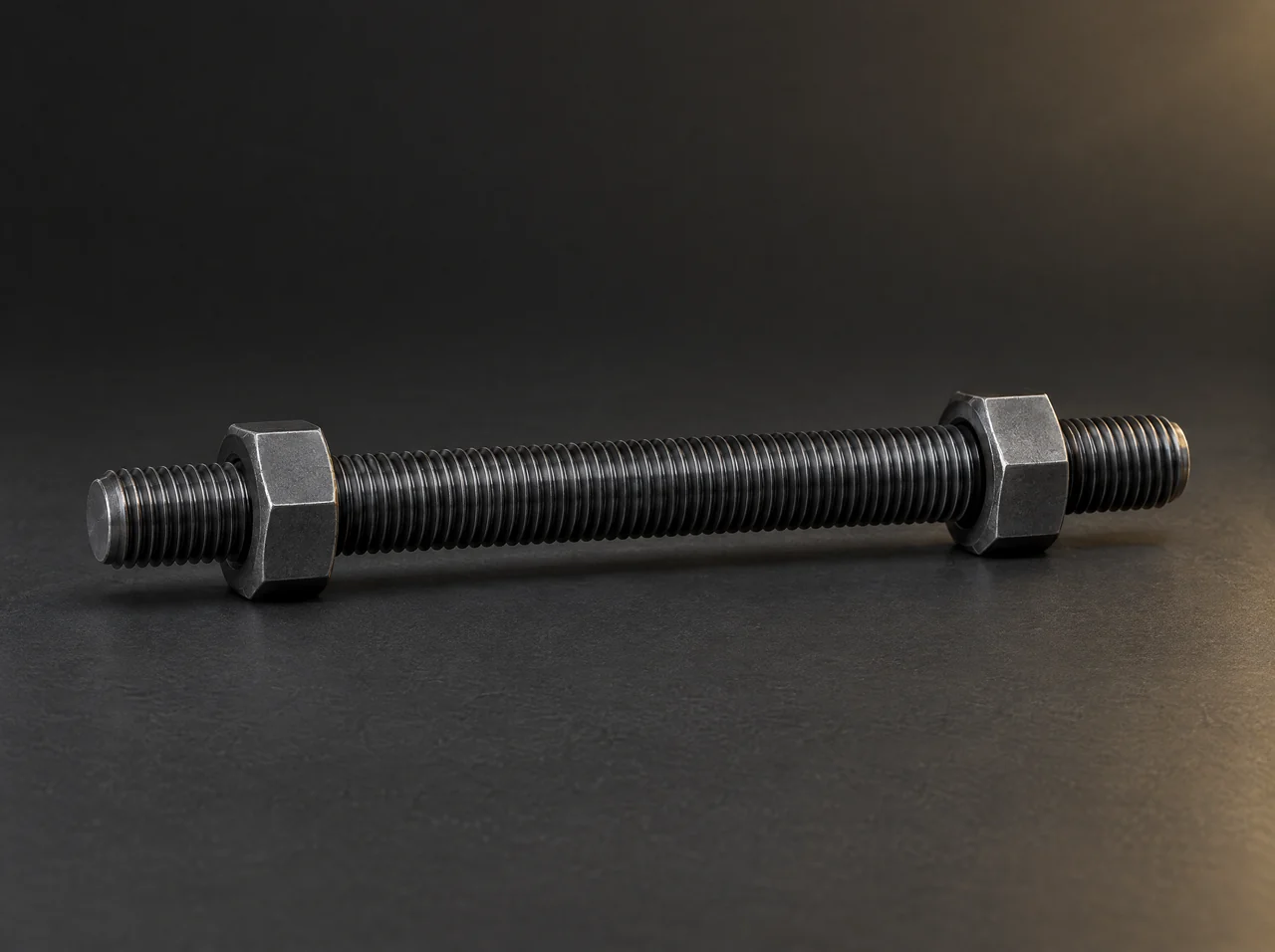

Stud bolts
Representative product configuration.
Manufacturing overview

Stud bolts, defined by the order.

All-thread studs are a core part of Cyclone’s product range. The published catalog includes A193 B7 studs paired with two A194 2H nuts, in plain and coated finishes. Send the governing specification, required dimensions, quantity, and documentation package so the team can confirm the correct manufacturing route.

A193 B7A194 2H nuts
  • Plain, TFE blue, and cadmium-plated listings
  • Diameter range: ¼–4 in
  • Length and thread requirements confirmed with your RFQ

Specify material grade and condition, dimensions, thread series/class, quantity, finish, required delivery, and documentation.

Product specifications

Stud bolt range

DetailAvailable range
AssemblyA193 B7 studs with two A194 2H nuts
FinishesPlain, TFE blue, cadmium plated
Diameter1/4" through 4"
LengthTo the customer’s specification
Stud bolts explained

What a stud bolt is.

A stud bolt is a fully threaded rod with no head, tightened with a heavy hex nut on each end. It is the standard fastener for bolted pipe flanges, valves and pressure vessels. Cyclone Bolt manufactures stud bolts in Houston, Texas, in diameters from 1/4 in. through 4 in., cut to the length on the order.

Stud specificationMaterialCompanion nut
ASTM A193 Grade B7Chromium-molybdenum alloy steel, quenched and temperedASTM A194 Grade 2H heavy hex
ASTM A193 Grade B8Type 304 stainless steelASTM A194 Grade 8 heavy hex
ASTM A193 Grade B8MType 316 stainless steelASTM A194 Grade 8M heavy hex

Reference only. The current edition of each standard governs your order.

Stud bolt questions

What is a stud bolt?

A stud bolt is a fully threaded rod with no head, used with two heavy hex nuts to clamp a joint. It is the usual fastener for bolted pipe flanges, valves and pressure vessels.

What are stud bolts made of?

The most widely specified grade is ASTM A193 B7, a quenched and tempered chromium-molybdenum alloy steel, paired with ASTM A194 2H heavy hex nuts. Stainless assemblies use A193 B8 (Type 304) or B8M (Type 316) studs with A194 Grade 8 or 8M nuts.

What sizes of stud bolts does Cyclone Bolt make?

Diameters from 1/4 in. through 4 in., with length cut to the customer’s specification. Ask the team about availability for your exact size and quantity.

How is stud bolt length measured?

Flange stud length is conventionally measured first thread to first thread, without the points. Tell us which convention your drawing uses.

What thread do stud bolts use?

Coarse thread (UNC) is standard through 1 in. Above 1 in., studs for flange and pressure service are normally ordered with 8 threads per inch (8UN). State the series and class on your order.

How many stud bolts does a flange need?

The quantity, diameter and length follow from the pipe size and pressure class in ASME B16.5. See the flange bolt chart.

Are stud bolts supplied with nuts?

Yes. Cyclone lists A193 B7 studs with two A194 2H heavy hex nuts, in plain, TFE blue and cadmium-plated finishes.

Where are Cyclone Bolt stud bolts made?

Cyclone Bolt manufactures in Houston, Texas, at 11330 Tanyard Creek Drive. Every order is quoted: request a quote, call 281-372-6050 or email inquiry@cyclonebolt.com.
