B8 / B8M assemblies

Stainless steel studs

ASTM A193 B8 and B8M studs with matching A194 Grade 8 and 8M nuts.

Stainless steel studs

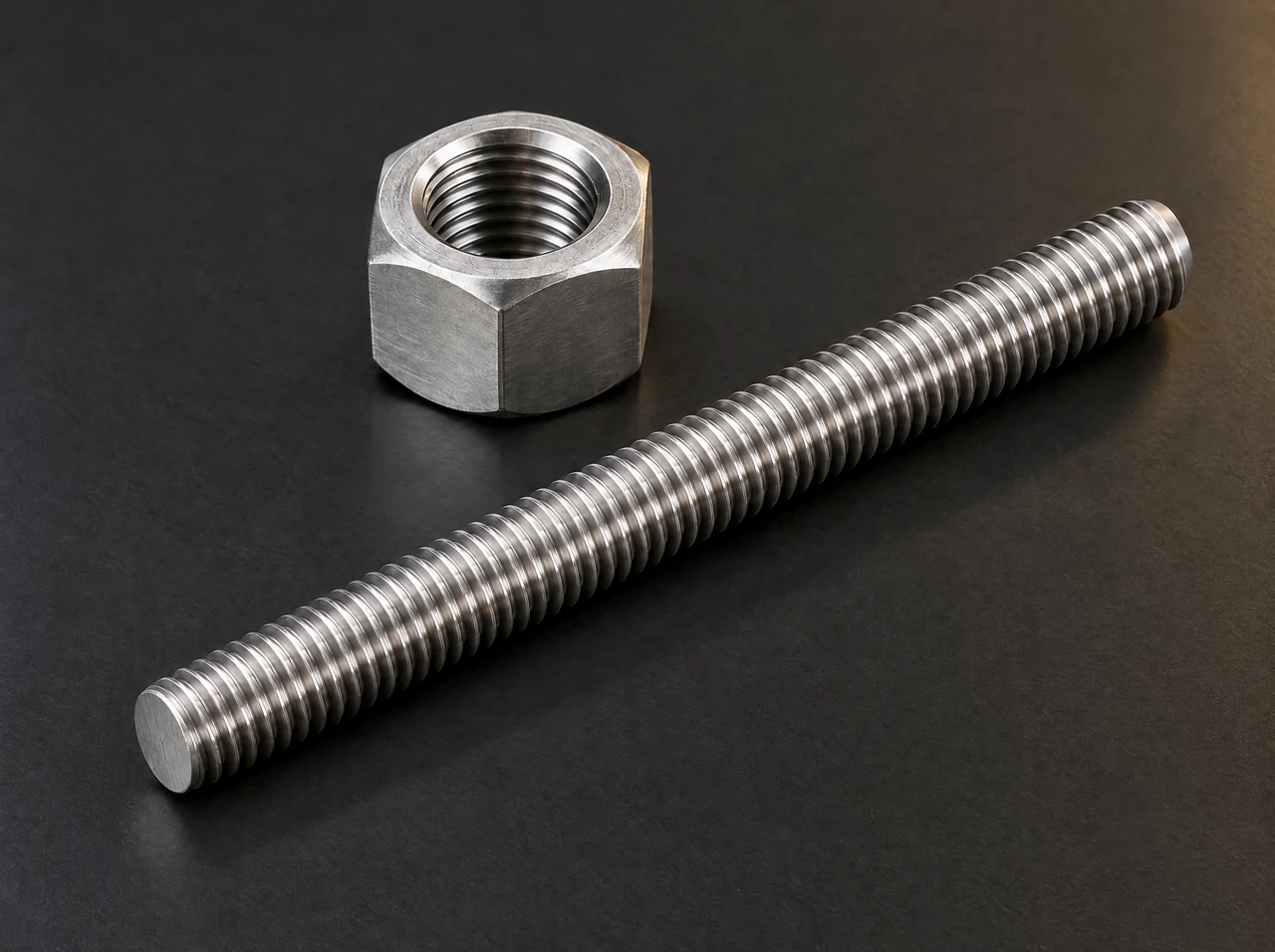

Representative product configuration.
Manufacturing overview

Stainless steel studs, defined by the order.

The stainless stud range includes B8 and B8M material families with corresponding nut grades. Specify the required class, condition, dimensions, governing standard, and application requirements on the purchase specification. Material suitability is determined by your responsible engineer.

A193 B8A193 B8MA194 Gr 8 / 8M
  • B8 studs with Grade 8 nuts
  • B8M studs with Grade 8M nuts
  • Diameter range: ¼–4 in

Specify material grade and condition, dimensions, thread series/class, quantity, finish, required delivery, and documentation.

Product specifications

Stainless steel stud range

DetailAvailable range
B8 assemblyB8 studs with Grade 8 nuts
B8M assemblyB8M studs with Grade 8M nuts
Diameter1/4" through 4"
LengthTo the customer’s specification
Stainless studs explained

B8 and B8M, in plain terms.

ASTM A193 Grade B8 studs are Type 304 stainless steel and Grade B8M studs are Type 316 stainless steel. Cyclone Bolt supplies both in diameters from 1/4 in. through 4 in., with matching ASTM A194 Grade 8 and 8M nuts.

Stud gradeAlloyMatching nut
ASTM A193 B8Type 304 stainless steelASTM A194 Grade 8
ASTM A193 B8MType 316 stainless steelASTM A194 Grade 8M

Reference only. The current edition of each standard governs your order.

Stainless stud questions

What is a B8 stud?

A B8 stud is a stud made to ASTM A193 Grade B8, which is Type 304 stainless steel. It is paired with ASTM A194 Grade 8 nuts.

What is the difference between B8 and B8M?

B8 is Type 304 stainless steel and B8M is Type 316, which contains molybdenum. Which one an application needs is decided by the responsible engineer and the governing code.

What do Class 1 and Class 2 mean for B8 and B8M?

In ASTM A193, Class 1 bolting is carbide solution treated. Class 2 is solution treated and then strain hardened, which raises its strength; the required strength varies with diameter. State the class on your order.

Which nuts go with stainless steel studs?

ASTM A194 Grade 8 nuts with B8 studs and Grade 8M nuts with B8M studs.

What sizes of stainless steel studs does Cyclone Bolt supply?

Diameters from 1/4 in. through 4 in., with length to the customer’s specification.

Where does Cyclone Bolt make stainless studs?

Cyclone Bolt manufactures in Houston, Texas, at 11330 Tanyard Creek Drive. Every order is quoted: request a quote, call 281-372-6050 or email inquiry@cyclonebolt.com.
