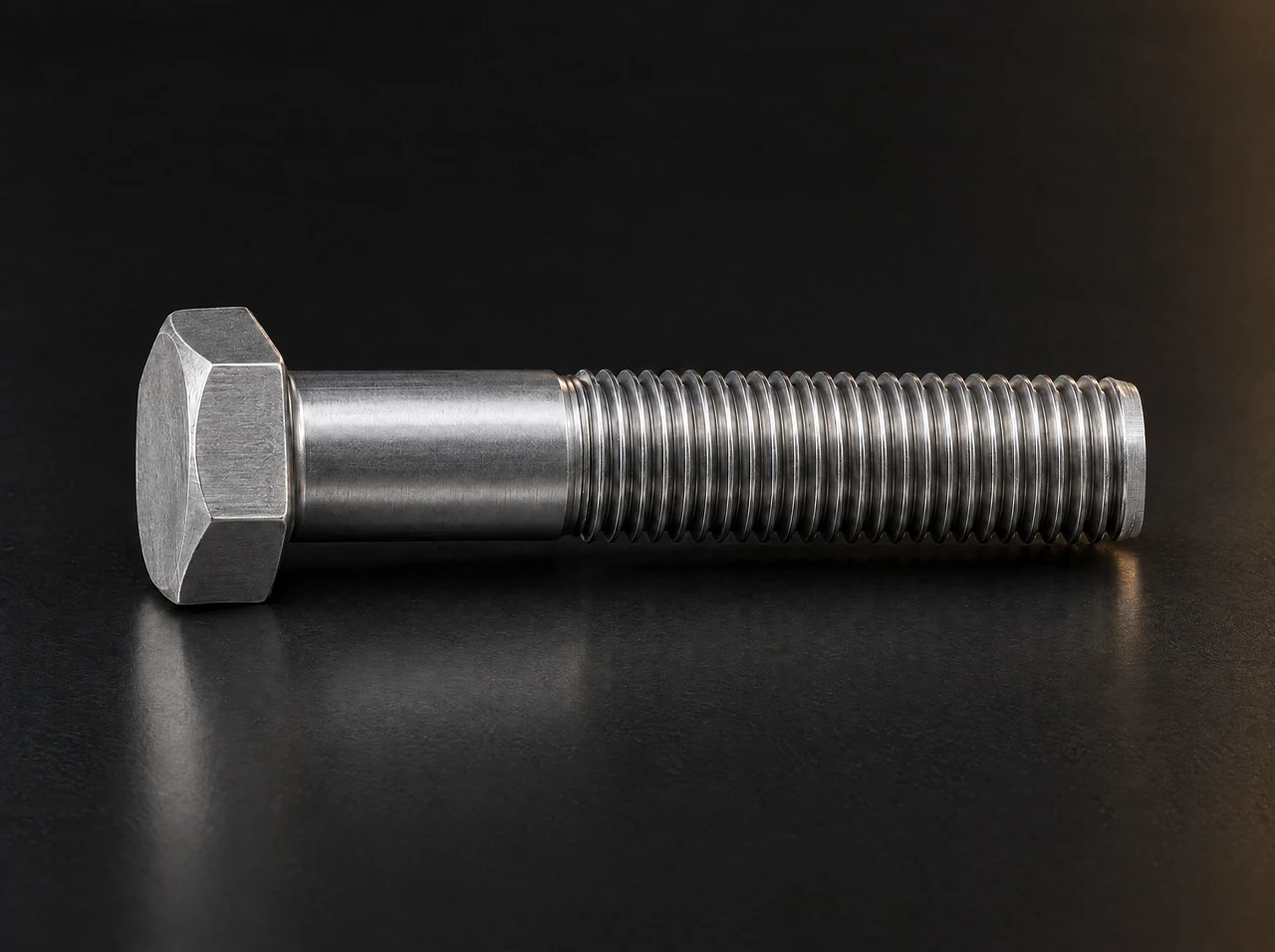

Representative product configuration.
Manufacturing overview

Hex bolts & cap screws, defined by the order.

From conventional hex-head geometry to a drawing-specific component, Cyclone’s manufacturing team reviews your dimensions, material, finish, and inspection requirements before committing to production. The technical library includes dimensional references for hex cap screws and heavy hex bolts.

Customer-specified materialStandard or custom dimensions
  • Hex and heavy hex configurations
  • Partial or full thread requirements
  • Identification and documentation as specified

Specify material grade and condition, dimensions, thread series/class, quantity, finish, required delivery, and documentation.

Hex Bolts & Cap Screws

Define the part. Align the requirement.

A hex bolt RFQ needs more than diameter and length. Head geometry, grip length, thread engagement and the specified material condition define the part that arrives at assembly. Cyclone reviews conventional hex-head, heavy-hex and drawing-specific headed fasteners against the purchase requirements.

Geometry and dimensions

Identify hex, heavy hex or cap-screw geometry. Supply nominal diameter, under-head length, grip length, head dimensions and any drawing-controlled features. Sizes are reviewed by the team for the specific part.

Material and standard

State the exact material specification, grade, condition and required revision. Cyclone’s technical library contains separate dimensional references for hex cap screws and heavy hex bolts; include the governing reference in the RFQ.

Thread definition

Specify full or partial thread, thread series, pitch, class and any runout or engagement limits. Include the mating component when its fit controls acceptance.

Finish and marking

Define the coating system, thickness or allowance, and required marking location. Plain, coated and plated requirements are reviewed with the material and thread requirements together.

Questions before you quote

Are hex bolts and cap screws interchangeable?

Do not substitute from the product name alone. Use the geometry, tolerances and governing standard specified by the responsible engineer. Send those requirements with the inquiry.

Can I request a drawing-specific headed fastener?

Yes. Include the drawing revision, material, quantity, critical dimensions and inspection requirements so Cyclone can review machining scope and delivery.

What size range can I order?

Confirm diameter, length, head size and thread requirements with the team. This page does not state a universal manufacturing envelope for all headed parts.

Hex bolts explained

What a hex head bolt is.

A hex bolt is a threaded fastener with a six-sided head, turned with a wrench and normally used with a nut. Inch-series dimensions for hex bolts, hex cap screws and heavy hex bolts are set by ASME B18.2.1. Cyclone Bolt manufactures hex bolts and cap screws in Houston, Texas, to the specification on the order.

SpecificationMaterialTensile strength, min
SAE J429 Grade 5Medium carbon steel, quenched and tempered120 ksi (1/4 in. through 1 in.)
SAE J429 Grade 8Medium carbon alloy steel, quenched and tempered150 ksi
ASTM A307 Grade ACarbon steel60 ksi
ASTM A193 Grade B7Chromium-molybdenum alloy steel, quenched and tempered125 ksi (2-1/2 in. and under)

Reference only. The current edition of each standard governs your order. The table lists common specifications; it is not a stock list.

Hex bolt questions

What is a hex bolt?

A hex bolt is a threaded fastener with a six-sided head, turned with a wrench and normally used with a nut. It is also called a hex head bolt.

What is the difference between a hex bolt and a hex cap screw?

Both have a hex head and both are covered by ASME B18.2.1. A hex cap screw is made to tighter tolerances and has a washer face under the head and a chamfered point. A hex bolt has looser tolerances and may have neither.

What is a heavy hex bolt?

A heavy hex bolt has a head that is wider across the flats than a standard hex bolt of the same diameter, which gives it a larger bearing surface.

What do the lines on a hex bolt head mean?

On inch-series SAE J429 bolts, three radial lines mark Grade 5 and six mark Grade 8. See Grade 5 vs Grade 8 bolts.

What does Cyclone Bolt need to quote hex bolts?

The material specification and grade, diameter, length under the head, thread series and class, full or partial thread, finish, quantity and the documentation the order requires.

Where does Cyclone Bolt make hex bolts and cap screws?

Cyclone Bolt manufactures in Houston, Texas, at 11330 Tanyard Creek Drive. Every order is quoted: request a quote, call 281-372-6050 or email inquiry@cyclonebolt.com.
