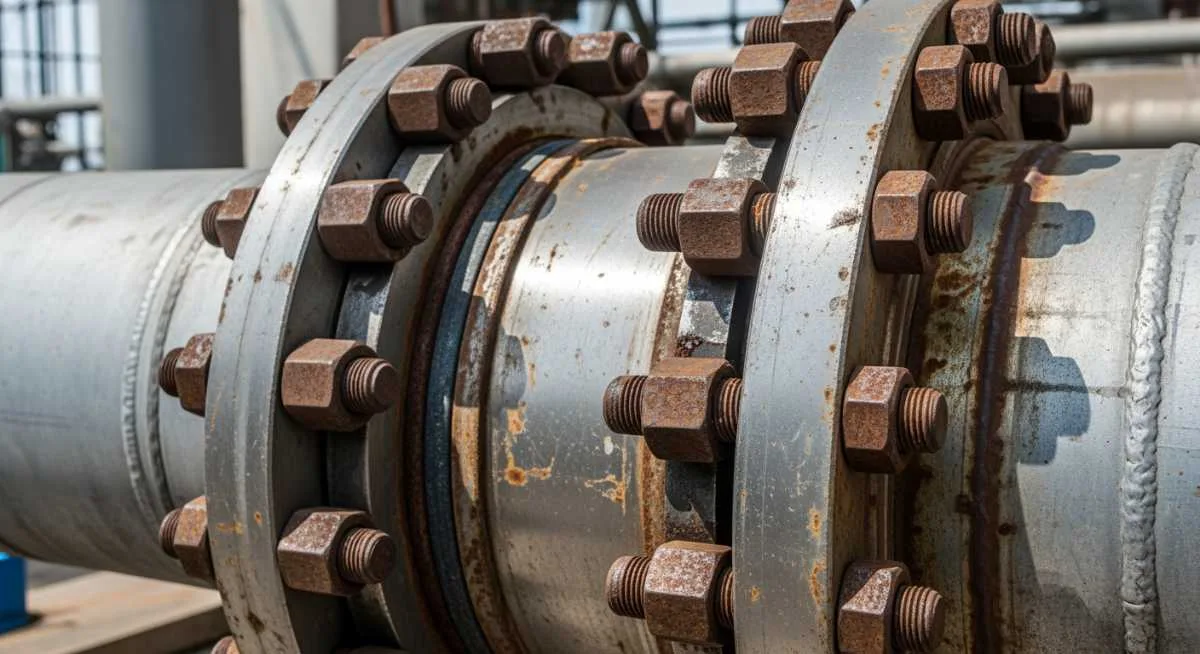

A Bolt is Not Just a Bolt: Why You Can’t Use Standard Bolting on High-Pressure Flanges
In any industrial setting—be it a sprawling Houston refinery, an offshore platform, or a power generation plant—the smallest components often carry the largest risk. Among these, the bolts that seal your high-pressure flanges are one of the most critical.
It’s tempting to look at a bolt as a simple commodity. You might see a “Grade 8” hex bolt at a hardware store that looks identical to an engineered stud and wonder, “What’s the difference? Why am I paying more for this ‘special’ flange bolt?”
The answer is simple: Using a standard, non-specified bolt on a high-pressure flange is one of the most dangerous and costly mistakes you can make.
A “standard” bolt is a fastener. A high-pressure flange bolt is an engineered spring, meticulously designed, manufactured, and tested to maintain a critical seal under extreme conditions.
This article explores the five critical differences between a standard bolt and a high-pressure flange bolt, what happens during a failure, and why certified quality systems are non-negotiable for your plant’s safety and integrity.
1. What We Mean by a “Standard Bolt”
When we say “standard bolt,” we’re typically referring to fasteners you can buy off the shelf, like:
- ASTM A307: Low-carbon steel bolts for general-purpose applications (like a deck or basic construction).
- SAE J429 Grade 5 or Grade 8: High-strength, heat-treated bolts common in automotive and heavy machinery.
These bolts are engineered for one primary purpose: tensile strength. They are designed to hold things together, often in a shear (sideways) or static tensile (pulling) load. They do their job perfectly well in those applications.
However, they are not designed for the unique, dynamic forces inside a high-pressure, high-temperature (HPHT) bolted flange joint. Using them in this context is like using a car tire on an airplane—it might look the part, but it will fail catastrophically under pressure.
2. The 5 Critical Differences of a High-Pressure Flange Bolt
The workhorse of the petrochemical and power industries is the ASTM A193 Grade B7 stud bolt, almost always paired with ASTM A194 Grade 2H heavy hex nuts.
Here is why this specific combination is essential.
Difference 1: Material Chemistry (Alloy vs. Carbon Steel)
A “standard” bolt is often plain carbon steel. An ASTM A193 B7 stud is not.
B7 studs are made from AISI 4140/4142 alloy steel, which is a chromium-molybdenum (Chro-Moly) steel. This specific alloy chemistry is chosen for its:
- High-Temperature Strength: The chromium and molybdenum add incredible strength, not just at room temperature, but at elevated temperatures where standard carbon steel would become soft and weak.
- Toughness and Ductility: It has the ability to stretch and deform under load without fracturing.
A Grade 8 bolt, while very strong at room temperature, is often too hard and brittle. It’s not designed to stretch; it’s designed to resist breaking. This is a critical distinction we’ll cover in a moment.
Difference 2: Heat Treatment (Toughness vs. Hardness)
This is where the science gets critical. Both a Grade 8 bolt and a B7 stud are “heat treated,” but to achieve different goals.
- Grade 8: Heat treated for maximum hardness and tensile strength.
- B7 Stud: Heat treated via a “Quench and Temper” process. It’s rapidly cooled (quenched) to become hard, then reheated (tempered) to a specific temperature. This tempering process reduces the hardness but dramaticallyincreases toughness—the ability to absorb energy and stretch without breaking.
A flange bolt must be tough and ductile. A bolt that is too hard (like Grade 8) can suffer from brittle fracture, snapping suddenly with no warning while being tightened.
Difference 3: Engineering for Preload (The Bolt as a Spring)
This is the most important concept in flange bolting.
A bolted flange joint is a system: Flange 1 + Gasket + Flange 2. The only thing holding this system together and preventing a leak is the clamping force generated by the bolts. This force is called preload.
Preload is not achieved by just tightening a bolt until it’s “snug.” Preload is achieved by stretching the bolt like a high-powered, very stiff spring.
This “stretch” (measured in thousandths of an inch) is what maintains a constant, compressive force on the gasket, allowing it to seal against the immense internal pressures trying to push the flanges apart.
- Why B7s Work: B7 studs are specifically engineered to stretch elastically (like a rubber band) and maintain this spring-like tension.
- Why Standard Bolts Fail: A “hard” Grade 8 bolt has very little stretch. When you torque it, you quickly reach its breaking point without ever achieving the “stretch” needed to seal the joint. It might snap right there on the bolt-up.
Difference 4: Design for Temperature and Creep
Industrial processes are not static. They run hot, they run cold, and they cycle between the two.
- High Temperatures: Standard bolts lose a significant portion of their strength at high temperatures. Worse, they suffer from creep—a slow, permanent stretching under load and heat. As the bolt creeps, it gets longer, the preload is lost, the gasket decompresses, and the flange leaks. B7’s Chro-Moly chemistry is specifically designed to resist creep at temperatures up to 800°F (427°C).
- Low Temperatures: For cryogenic applications (like LNG), B7 bolts become brittle. This is why a different standard, ASTM A320 Grade L7, is used, which is engineered to remain tough at temperatures down to -150°F (-101°C).
A standard, off-the-shelf bolt has no specified temperature rating. Using it is a complete gamble.
Difference 5: Coatings and Torque (The K-Factor)
Flange bolts are rarely installed bare. They are often coated, especially in corrosive environments like the Texas Gulf Coast.
Standard bolts might have a simple zinc plating. High-pressure studs often use specialized PTFE (Teflon/Xylan) coatings. This coating serves two purposes:
- Corrosion Resistance: It provides an inert barrier against moisture and chemicals.
- Friction Management: This is critical. The torque you apply with a wrench is mostly used to overcome friction (at the nut face and in the threads). Only a small fraction of your torque (~10-15%) becomes useful preload.
A PTFE coating provides a very low and, most importantly, consistent friction value (known as the “K-factor”). This consistency means your torque calculations are accurate and every bolt in the flange achieves the same preload.
A zinc-plated “standard” bolt has a high and unpredictable friction factor, making an accurate bolt-up almost impossible. You will overtighten some bolts (risking fracture) and undertighten others (guaranteeing a leak).
The Anatomy of a Failure: What Happens When You Use the Wrong Bolt?
So, you decide to save a few dollars and use Grade 8 bolts on a 6-inch, 600-class steam flange. What happens next?
- Failure During Installation: You start the star-pattern bolt-up. The spiral-wound gasket for this flange requires high seating stress. As you apply torque to the Grade 8 bolt, you’re not getting much “stretch.” You’re just building stress. Suddenly, SNAP. The bolt head shears off. The bolt was too brittle for the required load.
- Failure After 100 Hours (Leakage): Let’s say you manage to get the joint bolted. The system heats up. The standard bolts, not designed for temperature, begin to soften and “creep.” They permanently stretch. The clamping force on the gasket is lost. A wisp of steam appears. This is a fugitive emission, a safety hazard, and a reportable environmental incident.
- Catastrophic Failure (Blowout): The leak goes unnoticed. The internal pressure (600 PSI of steam) finds the weak spot. It ejects the high-temperature gasket, followed by an explosive, high-velocity release of steam. This is a blowout—a life-threatening event that triggers an emergency shutdown and costs millions in lost production and repairs.
Beyond the Spec: Why Certified Quality is Your Only Guarantee
It’s not enough to just order “A193 B7” bolts. You must have proof. How do you know the bolt you’re holding is actually B7 and not a counterfeit, a mislabeled bolt, or one made from inferior metal?
This is where a certified manufacturer like Cyclone Bolt becomes your critical partner. A “standard” bolt from a bin has no history. Our bolts have a resume.
- Full Traceability & MTRs: Every high-pressure bolt we provide is fully traceable back to the original steel mill. It comes with a Material Test Report (MTR) that certifies its exact chemical composition and mechanical properties (tensile strength, yield, hardness).
- ISO 9001:2015 Certification: This is our commitment to quality. It’s an independently audited system that proves we have robust, repeatable processes for everything from order entry to final inspection.
- API Spec Q1: This is the “gold standard” for oil and gas. It’s an advanced quality system focused on risk-based thinking and failure prevention. We don’t just inspect for quality at the end; we build it into every step of the manufacturing process.
- API 20E & 20F Monograms: We are certified to manufacture critical service fasteners under API 20E (for alloy) and API 20F (for corrosion-resistant). This is one of the highest assurances of quality in the industry, requiring rigorous testing, traceability, and process control.
When you use a standard, non-traceable bolt, you are accepting 100% of the risk. When you use a certified, traceable bolt from Cyclone Bolt, you are installing a component engineered for integrity.
Your plant’s safety, uptime, and environmental compliance rest on the integrity of your bolted flange joints. Don’t let a $5 “standard” bolt be the cause of a multi-million dollar failure.
A flange bolt is not a commodity; it’s a critical safety device.
Our team of bolting experts in Houston, TX, lives and breathes this technology. We are not just a supplier; we are a domestic manufacturer certified to the highest standards (API Q1, API 20E/20F, ISO 9001). We ensure that every fastener you install is the right fastener, every time.
Stop gambling on your critical connections. Contact Cyclone Bolt today to speak with an engineer about your high-pressure bolting applications.
FAQs from Cyclone Bolt about Flange Bolting
1. Can I use a Grade 8 bolt for a high-pressure flange?
No. You should never use an SAE Grade 8 bolt on an ASME high-pressure flange. Grade 8 bolts are engineered for high hardness and shear strength, making them brittle. They can snap during the tensioning (stretching) process required for flange preload. They also lack the high-temperature resistance and toughness of specified flange bolts.
2. What is an ASTM A193 B7 stud bolt?
The ASTM A193 B7 stud is the most common high-strength bolt used for high-pressure and high-temperature flange bolting in the oil, gas, and petrochemical industries. It is made from a chromium-molybdenum (Chro-Moly) alloy steel that is quenched and tempered to provide a unique combination of high strength, toughness, and resistance to “creep” at high temperatures.
3. What is the difference between an A193 B7 stud and an SAE Grade 8 bolt?
The main difference is their engineering purpose. A B7 stud is designed to be a ductile “spring” that stretches to create preload and maintain a seal under dynamic temperature and pressure. A Grade 8 bolt is designed for hardness and tensile strength in static (non-pressurized) applications. Using a Grade 8 bolt in place of a B7 is a critical safety risk.
4. What nut should be used with an A193 B7 stud?
The standard and required pairing for an ASTM A193 B7 stud is an ASTM A194 Grade 2H heavy hex nut. The 2H nut is specifically engineered to match the B7’s strength and mechanical properties. Using a lower-grade nut (like a “Grade 5” or A563-A nut) will cause the nut to strip its threads long before the bolt is properly tensioned, resulting in joint failure.
5. What is “preload” in flange bolting?
Preload is the specific clamping force, or tension, that is applied to a flange joint by stretching the bolts. This “stretch” acts like a powerful spring, compressing the gasket and creating a seal that is stronger than the internal pressure (like steam or oil) trying to push the flanges apart. Proper preload is the single most important factor in preventing flange leaks.
6. What is “creep” in a bolt and why is it dangerous?
Creep is the slow, permanent stretching of a metal under high temperature and constant load. Standard bolts will “creep” when hot, causing them to lengthen. As the bolt lengthens, the “preload” (clamping force) on the gasket is lost, leading to a dangerous leak or blowout. B7 and B16 studs are made with alloys (like chromium and molybdenum) specifically to resist creep.
7. Why is a Material Test Report (MTR) required for flange bolts?
A Material Test Report (MTR), also called a “mill cert,” is the bolt’s birth certificate. It provides absolute proof of the bolt’s chemical composition and mechanical properties (like strength and hardness). For critical applications, an MTR is the only way to guarantee you are installing a genuine, non-counterfeit bolt that meets the required ASTM specifications. Quality systems like API Q1 demand this level of traceability.
8. What is the difference between A193 B7 and A193 B16 bolts?
Both are high-temperature bolts, but B16 is an upgrade over B7 for higher-temperature service. B7 studs (Chro-Moly) are typically rated for service up to 800°F. B16 studs have added Vanadium and are engineered to resist creep at even higher temperatures, making them suitable for service between 800°F and 1100°F, often found in power plants and high-temp reactors.
9. Can you reuse high-pressure flange bolts?
It is strongly discouraged and against the safety policy of most industrial facilities. Once a stud bolt has been properly tensioned, it may have been stretched past its elastic limit (yield point). It may also have damaged threads or unseen corrosion. Reusing a bolt is a gamble, as it may not achieve the required preload a second time, leading to failure.
10. Why are API 20E or ISO 9001 certifications important for a bolt manufacturer?
These certifications are your proof of quality and reliability. ISO 9001 ensures a manufacturer has a documented, repeatable quality management system. API 20E (Bolting Specification Level) is a much stricter standard specifically for critical-service oil and gas fasteners. It guarantees the highest level of manufacturing process control, testing, and traceability, significantly reducing the risk of bolt failure.
