In the industrial world, a bolt is never “just a bolt.”

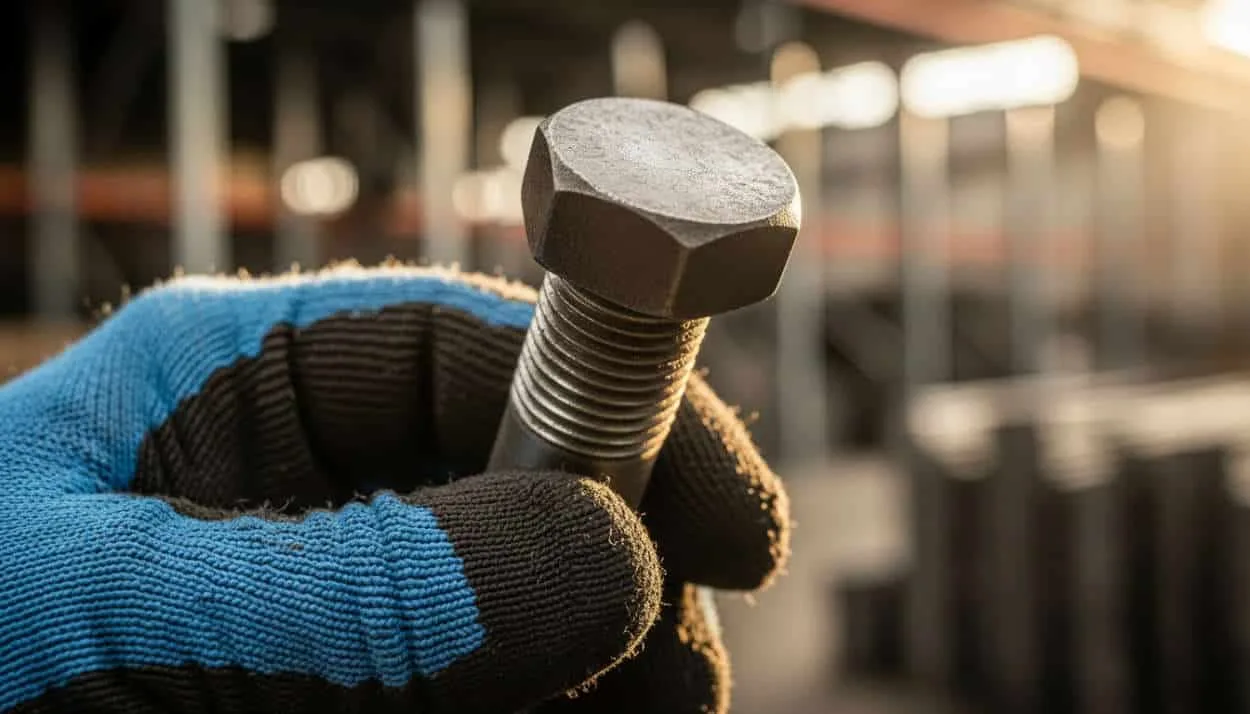

Imagine you are on a job site. You have two fasteners in your hand. They are the same size. They have the same thread pitch. They look identical to the naked eye. However, one is a standard hardware store bolt, and the other is a high-strength alloy steel bolt designed for extreme pressure.

Installing the wrong one could lead to a catastrophic failure. It could mean a leaked flange, a broken machine, or a safety hazard for your team.

So, how do you tell them apart? The answer is on the head.

Bolt head markings are the “fingerprints” of the fastener industry. They tell you the material, the strength, and the manufacturer.

At Cyclone Bolt in Houston, Texas, we believe that knowledge is safety. This guide will teach you how to read these markings. We will also explain why buying from a trusted, API-licensed supplier like Cyclone Bolt is the only way to be sure those markings are telling the truth.

The Two Most Important Bolt Marks

Before we look at specific grades, you need to know what you are looking for. Most high-quality bolts will have two distinct types of markings stamped on the head:

  1. The Manufacturer Mark: This is a symbol or set of letters that identifies who made the bolt. This is crucial for traceability. If a bolt fails, you need to know who made it.

  2. The Grade Mark: This is the symbol, series of lines, or numbers that indicate the material properties and tensile strength.

If a bolt has no markings at all? Do not use it for load-bearing applications. An unmarked bolt is a mystery bolt.

Decoding SAE J429 Bolts (The “Line” System)

In the United States, for standard machinery and automotive applications, we often use the SAE (Society of Automotive Engineers) J429 standard. These bolts are measured in inches.

The system is simple. You look for radial lines on the head of the bolt.

SAE Grade 2

  • The Mark: No lines (bald head).

  • The Material: Low or medium carbon steel.

  • The Strength: Low strength.

  • Use Case: General hardware use, DIY projects, non-critical wood construction. Never use these for high-stress industrial machinery.

SAE Grade 5

  • The Mark: 3 radial lines (spaced 120 degrees apart).

  • The Material: Medium carbon steel, quenched and tempered.

  • The Strength: Medium strength (120,000 psi tensile strength for common sizes).

  • Use Case: Automotive parts, general machinery. This is the “workhorse” bolt for general applications.

SAE Grade 8

  • The Mark: 6 radial lines.

  • The Material: Medium carbon alloy steel, quenched and tempered.

  • The Strength: High strength (150,000 psi tensile strength).

  • Use Case: High-stress automotive suspensions, heavy manufacturing, and aerospace.

Quick Tip: For SAE bolts, add 2 to the number of lines to get the Grade.

  • 3 lines + 2 = Grade 5

  • 6 lines + 2 = Grade 8

Decoding Metric Bolts (The “Number” System)

If you are working with equipment manufactured in Europe or Asia, or modern automotive parts, you will see Metric bolts (ISO 898-1).

These do not use lines. They use two numbers separated by a dot.

Class 8.8

  • The Mark: “8.8” stamped on the head.

  • The Strength: roughly equivalent to SAE Grade 5.

  • The Math:

    • The first number (8) x 100 = 800 MPa (Tensile Strength).

    • The second number (.8) means the Yield Strength is 80% of the Tensile Strength.

Class 10.9

  • The Mark: “10.9” stamped on the head.

  • The Strength: Roughly equivalent to SAE Grade 8. High strength.

  • Use Case: Critical mechanical connections.

Class 12.9

  • The Mark: “12.9” stamped on the head.

  • The Strength: The strongest of the standard metric series. Superior to Grade 8.

  • Use Case: Heavy engines and critical manufacturing.

The Heavy Industry Standard: ASTM Markings

For the oil and gas industry, construction, and power generation sectors that Cyclone Bolt serves, SAE and Metric grades often aren’t enough. We rely on standards from ASTM International.

These bolts usually use a letter-number combination.

ASTM A325 (Now F3125 Grade A325)

  • The Mark: “A325”

  • The Use: Structural steel connections. If you see a skyscraper or a bridge, these bolts are holding the steel beams together. They have a heavy hex head (larger than a standard hex) for better wrenching.

ASTM A193 Grade B7

  • The Mark: “B7”

  • The Use: High-temperature, high-pressure environments. This is the standard for pressure vessels, valves, and flanges in the oilfield.

  • Why it matters: These bolts are made from chromium-molybdenum steel. They are heat-treated to withstand high heat without stretching or losing strength.

To learn more about the specifics of these materials, you can visit our Materials and Specifications page.

The Danger of Counterfeits and Mismarks bolt heads.

Now that you know how to read the markings, you might think you are safe.

Unfortunately, that isn’t always true.

In the global market, there is a risk of counterfeit bolts. Unscrupulous manufacturers may stamp “B7” or “Grade 8” on a bolt made of inferior steel.

If you install a fake B7 bolt on a high-pressure line, the head markings won’t save you when the pressure spikes. The bolt will snap, and the containment will fail.

This is why traceability is more important than the marking itself. You need to know that the marking is backed by paperwork and rigorous testing.

Why Cyclone Bolt is Your Necessary Partner

Cyclone Bolt isn’t just a distributor. We are a shield against quality failure. Located in Houston, Texas, the energy capital of the world, we understand the stakes.

Here is why top engineers and procurement managers choose Cyclone Bolt:

1. We Verify the Markings

When you see a grade mark on a Cyclone Bolt product, it is backed by our Quality and Tech team. We ensure that the chemistry and the mechanical properties match the stamp on the head.

2. API 20E and 20F Licensing

This is the highest level of trust in the industry. The American Petroleum Institute (API) has strict standards for critical bolting.

Cyclone Bolt holds licenses for both. This means our manufacturing processes, heating treating, and testing are audited to the strictest standards in the world. A hardware store cannot say that. Most industrial suppliers cannot say that.

3. API Q1 and ISO 9001:2015

Our quality management system is robust.

4. Adherence to Technical Standards

We strictly follow the guidelines set by ASTM, ASME, and API. Whether it is ensuring the correct thread pitch or verifying the hardness of a B7 stud, we follow the book. You can review our commitment on our Technical Standards page.

Knowing how to identify bolt grades by head markings is an essential skill. It helps you distinguish a Grade 5 bolt from a Grade 8, or a Metric 8.8 from a 12.9. It is the first line of defense against mechanical failure.

However, the marking is only a promise. To ensure that promise is kept, you need a supplier with the credentials to back it up.

Don’t gamble with your infrastructure. For your critical fastening needs, trust the company that is API licensed, ISO certified, and based right here in Houston.

Contact Cyclone Bolt today. Let’s secure your next project with certainty.

10 People Also Ask Questions

Use these in a FAQ section or accordion on your webpage to capture voice search traffic.

  1. How do I tell the grade of a bolt?

    • Answer: You identify the grade by looking at the symbols on the bolt head. SAE bolts use radial lines (3 lines for Grade 5, 6 lines for Grade 8), while Metric bolts use numbers (8.8, 10.9).

  2. What do 3 lines on a bolt head mean?

    • Answer: Three radial lines on a bolt head indicate it is an SAE Grade 5 bolt, made of medium carbon steel.

  3. What does B7 stamped on a bolt mean?

    • Answer: “B7” indicates the bolt meets ASTM A193 Grade B7 specifications, a high-strength, heat-treated chromium-molybdenum steel used for high-pressure applications.

  4. What is the difference between Grade 5 and Grade 8 bolts?

    • Answer: Grade 8 is stronger than Grade 5. Grade 8 has 6 lines and a higher tensile strength (150 ksi), while Grade 5 has 3 lines and a medium strength (120 ksi).

  5. Are bolts without markings safe to use?

    • Answer: Generally, no. Bolts without markings are considered Grade 2 or lower and should never be used in critical, structural, or high-stress applications.

  6. What do the numbers on metric bolts mean?

    • Answer: The first number represents tensile strength (x100 MPa), and the number after the dot is the yield strength ratio. For example, 8.8 means 800 MPa tensile strength.

  7. Why should I buy API 20E certified bolts?

    • Answer: API 20E certification ensures the bolt was manufactured with strict controls on chemistry, forging, and heat treatment, preventing failure in critical oil and gas operations.

  8. Where can I buy API licensed bolts in Houston?

    • Answer: Cyclone Bolt, located in Houston, Texas, is a fully licensed manufacturer of API 20E and API 20F critical bolting.

  9. What is the strongest standard bolt grade?

    • Answer: For SAE, Grade 8 is the strongest standard. For Metric, Class 12.9 is the strongest standard. For industrial pressure applications, specialized grades like A193 B7 are used.

  10. Does Cyclone Bolt provide Material Test Reports (MTRs)?

    • Answer: Yes, Cyclone Bolt provides full traceability and MTRs to verify that the markings on the bolt head match the actual chemical and physical properties of the steel.
