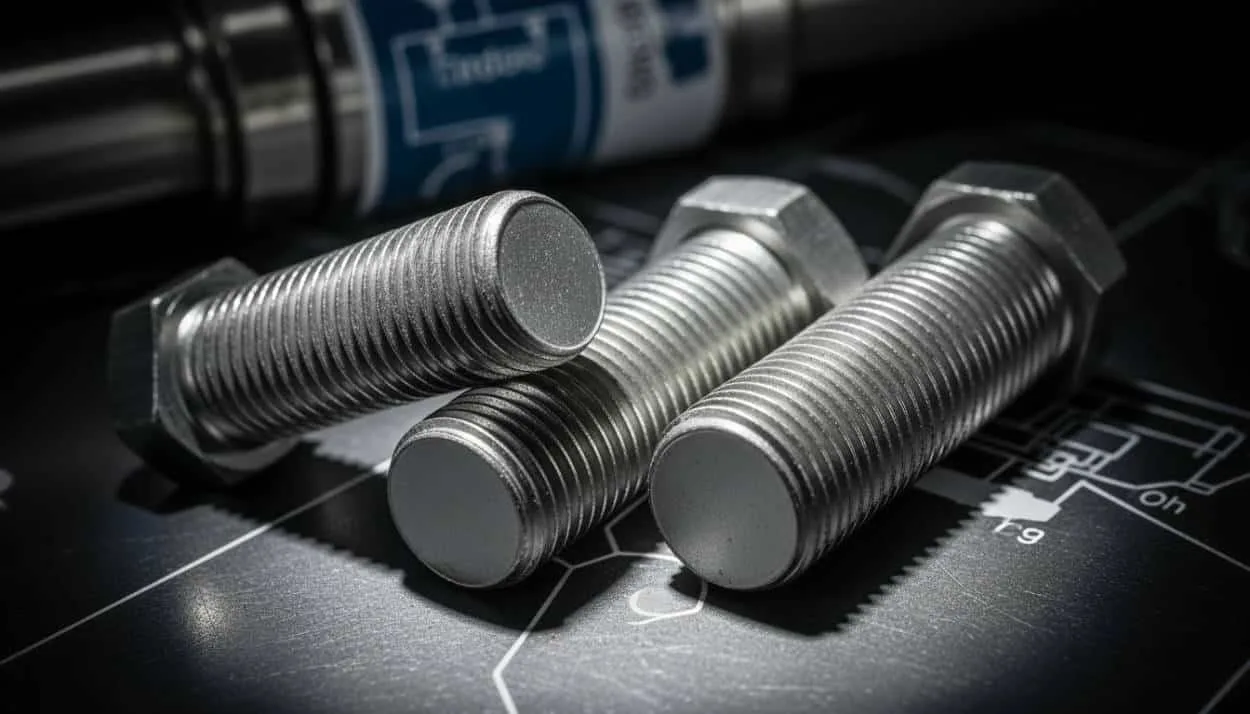

API 20F: The Key to Corrosion-Resistant Bolting Alloys

The Unseen Threat: Why Standard Bolts Fail in Extreme Environments

In the critical operations of the oil, gas, and petrochemical industries—especially those dealing with high pressure, high temperature (HPHT), and severe corrosive elements—the fasteners holding everything together are often the most vulnerable links. Failure is not an option; a compromised bolt can lead to catastrophic leakage, environmental damage, and massive downtime.

The primary threat in these harsh conditions is stress corrosion cracking (SCC) and general corrosion. These are accelerated by hydrogen sulfide (H2​S), chlorides, high salt content, and extreme pressure changes often encountered in subsea and deep-well applications.

To combat this relentless deterioration, the American Petroleum Institute (API) established API Specification 20F (API 20F). This specification sets the gold standard for the manufacture of Corrosion-Resistant Alloy (CRA) Boltingmaterials used in the most demanding, safety-critical environments.

At Cyclone Bolt in Houston, Texas, API 20F compliance is more than just a certification; it is the foundation of our engineering and manufacturing process. We understand that your project’s integrity rests on the quality of every single bolt. This article provides a comprehensive look into API 20F, detailing what it mandates, why it matters, and how Cyclone Bolt delivers compliant, mission-critical bolting solutions.

What is API Specification 20F?

API 20F, titled Corrosion-Resistant Bolting for Use in the Petroleum and Natural Gas Industries, is an internationally recognized standard designed to ensure the integrity and reliability of fasteners in aggressive service conditions. It goes far beyond typical material specifications by defining mandatory requirements for the entire lifecycle of the bolting product.

The Core Mandate of API 20F:

API 20F mandates stringent requirements for several key areas:

1. Material Selection: It restricts the use of certain alloys and dictates precise chemical compositions to ensure resistance to various forms of corrosion, including pitting and SCC.

2. Manufacturing Processes: It specifies rigorous requirements for forging, heat treatment, threading, and machining to control microstructures and prevent defects that could lead to premature failure.

3. Quality Control (QC) and Testing: It requires extensive, detailed non-destructive examination (NDE) and mechanical testing, often exceeding the requirements of general ASTM standards.

4. Traceability and Documentation: Complete traceability from the raw material source (mill) through the final heat treatment and testing batch is mandatory.

By requiring adherence to these controls, API 20F minimizes the risk of catastrophic failure in high-cost, high-risk applications where replacement is difficult or impossible.

Diving Deep into Corrosion-Resistant Alloys (CRAs)

API 20F primarily governs fasteners made from CRAs—alloys specifically designed to withstand corrosive and high-stress environments. These materials are essential because common carbon steel bolts would fail almost immediately in subsea or sour gas (H2​S) service.

Key CRA Families Governed by API 20F:

The specification covers a range of CRA grades, designated by the API (e.g., CRA $\text{B}7\text{C}$ for Alloy 718 equivalent), based on their intended service environment.

1. Nickel-Based Superalloys (e.g., Alloy 718, Alloy 625):

   • Characteristics: Extremely high tensile strength, exceptional resistance to SCC, high resistance to elevated temperatures and pitting corrosion.

   • Application: Ideal for critical HPHT components, subsea wellheads, downhole tools, and permanent marine installations where access for maintenance is impossible.

2. Duplex and Super Duplex Stainless Steels (e.g., UNS $\text{S}32750$):

   • Characteristics: Excellent strength and superior general corrosion resistance due to high chromium and molybdenum content. They offer a strong balance of properties and cost-effectiveness.

   • Application: Used widely in topside processing facilities, chemical plants, and environments exposed to high chloride levels (e.g., seawater).

3. Precipitation-Hardening Alloys (e.g., $\text{ASTM A}453$ Grade 660):

   • Characteristics: High strength achieved through aging/precipitation hardening, suitable for high-temperature service up to 1200∘F (650∘C).

   • Application: Flanges and pressure vessels in high-temperature processing units.

The choice of CRA is not arbitrary; it must align perfectly with the anticipated service conditions, including temperature, pressure, and the specific corrosive media present. API 20F provides the framework for ensuring that the material selected will perform its intended function safely over its design life.

The Strict Manufacturing Requirements of API 20F

API 20F mandates that manufacturers control every step of the production process to avoid introducing latent defects that can lead to SCC. The specification details comprehensive requirements for various manufacturing process grades (CQ-1, CQ-2, CQ-3) that dictate the level of control and testing required.

Critical Process Controls:

• Heat Treatment Uniformity: Heat treating is the most critical step for controlling the final microstructure and mechanical properties. API 20F requires meticulous temperature control, calibration, and documentation to ensure uniform hardening and tempering across all parts in a batch.

• Decarburization Control: The loss of carbon from the surface of steel during heat treatment (decarburization) drastically reduces surface hardness and fatigue life. API 20F sets strict limits on acceptable decarburization depth.

• Threading and Rolling: Fasteners produced under API 20F often require threads to be cold-rolled after heat treatment. Rolling threads before heat treatment or cutting threads after hardening can leave surface stress risers, making the bolt susceptible to fatigue and SCC. Rolling threads post-heat treatment improves the grain structure and surface finish, significantly enhancing fatigue life.

Mandatory Quality and Testing Requirements:

API 20F demands extensive testing documentation, far exceeding standard commercial fastener production. This commitment to verification is critical for mission-critical applications.

• Non-Destructive Examination (NDE): Requirements often include 100% Magnetic Particle Inspection (MPI)or Liquid Penetrant Inspection (LPI) to detect surface discontinuities and cracks.

• Hardness Testing: Strict limits on the maximum hardness of the CRA are imposed, as high hardness directly correlates with increased susceptibility to Hydrogen Sulfide Stress Corrosion Cracking (HSSCC), especially in sour environments ($\text{NACE MR}0175$).

• Mechanical Testing: Required testing includes tensile strength, yield strength, and elongation, all verified by accredited labs.

• Chemical Analysis: Verification of chemical composition using Positive Material Identification (PMI) is often required to confirm the alloy composition matches the design specification, especially for expensive nickel-based materials.

Beyond 20F: The Integrated Quality System (API Q1)

API 20F defines the product quality, but API requires the manufacturer to operate within a certified quality management system. Cyclone Bolt’s commitment to API 20F is backed by our adherence to broader quality standards.

• API Specification Q1 (9th Edition): This is the quality management system standard for manufacturing organizations supplying the petroleum and natural gas industry. API Q1 mandates strong documentation control, risk assessment, non-conformance management, and continuous improvement—all essential for consistently producing highly critical fasteners.

• ISO 9001:2015: Our quality system is also built on the foundation of ISO 9001, providing a globally recognized framework for ensuring consistent, high-quality manufacturing processes and customer satisfaction.

This layered approach—API Q1 governing the system and API 20F governing the product—is essential for mitigating risk in critical applications.

For a deeper understanding of the regulatory landscape governing materials in the energy sector, review the standards set forth by NACE International (formerly the National Association of Corrosion Engineers), particularly those related to H2​S environments. (For technical information on materials selection for sour service, consult NACE’s standards

Why Choose Cyclone Bolt for API 20F Bolting in Houston, TX

Based in the energy capital of Houston, Texas, Cyclone Bolt understands that compliance with API 20F is not a luxury—it’s the bare minimum for mission-critical applications. We serve the demanding needs of OEM suppliers, engineering firms (EPCs), and maintenance companies that cannot tolerate material failure.

The Cyclone Bolt Advantage:

• Dedicated API Compliance: Our manufacturing lines and heat treat furnaces are calibrated and controlled specifically to meet the stringent requirements of API 20F and API 20E. We are fully versed in the complex requirements for materials and process control.

• Full Traceability and Documentation: We provide comprehensive documentation packages (MTRs, COCs) that ensure complete traceability from the mill source to the final product shipment, satisfying the most rigorous audit demands.

• Specialized CRA Inventory: We maintain a ready inventory of precursor materials for common CRAs, including Nickel-based alloys and Super Duplex Steels, allowing us to respond quickly to custom or emergency bolting orders.

• Technical Expertise: Our engineers and quality teams are highly experienced in corrosion metallurgy, ensuring that the material we provide is correctly specified for your exact temperature, pressure, and corrosive media requirements.

When selecting a supplier for bolting in HPHT, sour, or subsea environments, the assurance provided by API 20F compliance is non-negotiable. It represents reduced risk, increased reliability, and long-term cost savings by avoiding catastrophic equipment failure.
