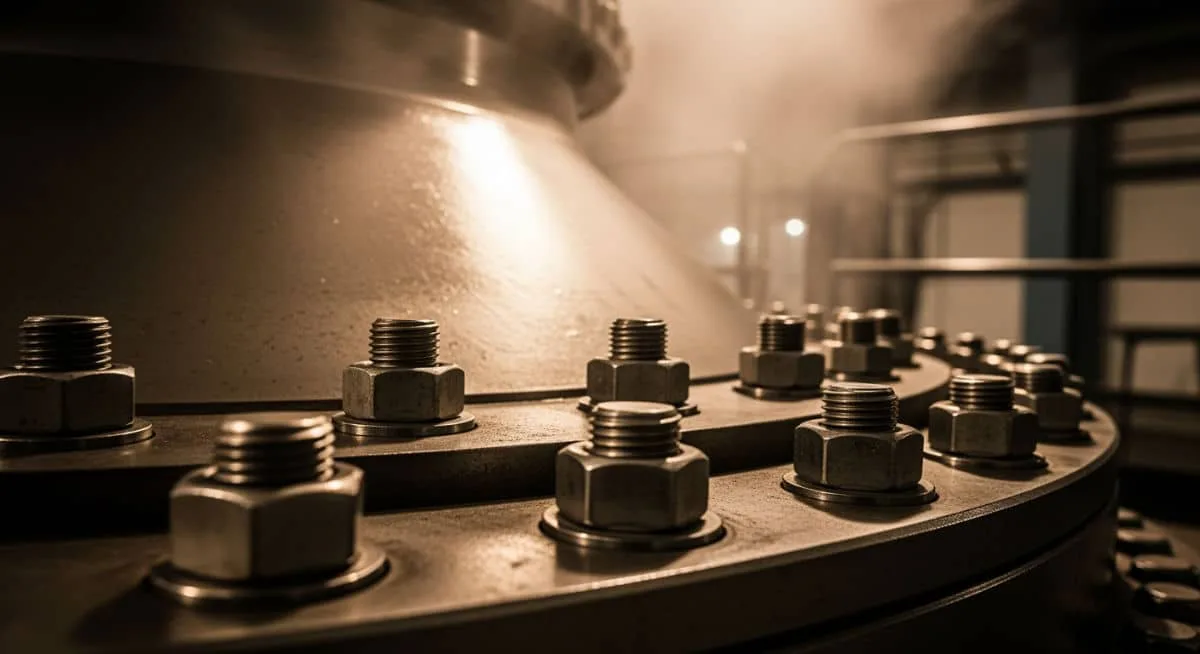

Powering Up: Critical Bolting for Steam Turbines and High-Temp Applications
In the power generation industry, “downtime” is a dirty word. Whether you are operating a combined-cycle natural gas plant or a traditional coal-fired facility, the steam turbine is the heart of your operation.
Inside that turbine, temperatures soar past 1,000°F (538°C), and pressures reach critical levels. Holding it all together are the fasteners: the casing studs, valve bolts, and rotor coupling fasteners.
If these components fail, the consequences are catastrophic. A steam leak can erode metal in seconds, and a catastrophic bolt failure can destroy a turbine worth millions.
For plant managers and maintenance leads, selecting the right fastener is not just a purchasing decision; it is a safety mandate. At Cyclone Bolt, based in the energy capital of Houston, Texas, we understand the metallurgy required to survive the heat.
Here is your guide to high-temperature bolting for steam turbines and how to prevent the most common failures in power generation.
The Enemy is Heat: Understanding Thermal Challenges
Standard bolts cannot survive inside a steam turbine. When steel is heated, it undergoes physical changes that compromise its structural integrity. To keep a turbine casing sealed, you must understand three specific thermal threats:
1. Thermal Expansion
As the turbine heats up during startup, the massive steel casing expands. The bolts holding the casing together must expand at a similar rate to maintain the seal.
- The Risk: If the bolt material expands less than the flange material, the bolt will be stretched beyond its yield point and snap.
- The Solution: Material matching is critical. The coefficient of thermal expansion for your fasteners must align with the equipment design.
2. Stress Relaxation
You torque a bolt to 5,000 ft-lbs during an outage. It is tight. But after six months of operation at 950°F, that bolt might feel loose.
- The Cause: At high temperatures, the atomic structure of the metal relaxes. The bolt physically lengthens slightly under the constant load, reducing the clamping force (preload).
- The Consequence: Steam leaks at the parting lines of the turbine casing.
3. Creep and Creep Rupture
This is the most dangerous long-term threat. “Creep” is the slow, permanent deformation of a material under stress over time.
- Visualizing Creep: Imagine stretching a piece of taffy. It stretches slowly until it suddenly snaps.
- The Danger: A bolt might look fine during an inspection but has internally “crept” to the point of failure. This leads to sudden rupture without warning.
Material Selection: B7 vs. B16 (And Beyond)
Choosing the right alloy is the primary defense against heat. Many general maintenance teams default to ASTM A193 Grade B7, but in power generation, B7 has limits.
ASTM A193 Grade B7 (The Standard)
B7 is the workhorse of the industrial world. It is a chromium-molybdenum steel that is incredibly strong.
- Temperature Limit: B7 is generally safe up to 750°F – 800°F.
- The Limitation: Above 800°F, B7 loses strength rapidly. In a high-pressure steam turbine, using B7 in the hottest sections is a recipe for failure.
ASTM A193 Grade B16 (The High-Temp Specialist)
When the heat turns up, you need Grade B16.
- The Chemistry: B16 is similar to B7 but includes Vanadium. This addition stabilizes the metal’s structure at higher temperatures.
- Temperature Limit: B16 performs reliably up to 1,100°F.
- Application: This is the standard for high-pressure steam turbine casings, boiler valves, and main steam lines.
At Cyclone Bolt, we stock and manufacture both, ensuring you have the right grade for the specific temperature zone of your turbine. You can verify the specifications of these materials on our Materials Specifications page.
Manufacturing Quality: Why “Standard” Isn’t Enough
In a refinery or power plant, a bolt with a hidden flaw is a ticking time bomb. This is where manufacturing standards become your insurance policy.
The Importance of Traceability
When you are replacing diaphragm bolts during a scheduled outage, you need to know exactly where that steel came from. Was it heat-treated correctly? Was the raw material pure?
Cyclone Bolt operates under a rigorous Quality Management System. We are certified to ISO 9001:2015 and API Spec Q1 9th Edition. While API (American Petroleum Institute) is often associated with oil and gas, the quality rigor applies directly to power generation.
- API Spec Q1 ensures that we have total control over our manufacturing processes.
- We track heat lots, furnace charts, and dimensional inspections.
- If a bolt fails, you need a paper trail. We provide it.
Leveraging API 20E and 20F Standards
For the most critical applications, we utilize standards like API 20E (Bolting for Use in Petroleum and Natural Gas Industries) and API 20F (Corrosion Resistant Bolting). Why does this matter for power plants?
- API 20E mandates strict testing for defects like microstructure flaws or inclusions in the steel.
- A bolt manufactured to API 20E standards is essentially a “super bolt”—verified to be free of the internal defects that cause premature fatigue failure in turbines.
Learn more about our commitment to these high standards on our Technical Standards page.
Avoiding Galling During Outages
One of the biggest headaches for power plant maintenance crews is galling.
- The Scenario: You are trying to remove a large casing stud after five years of operation. The nut seizes halfway off. The threads have welded themselves together (cold welding).
- The Result: You have to cut the bolt off, potentially damaging the expensive turbine casing flange and adding hours to your outage schedule.
Prevention Strategies
- Coating Selection: Standard zinc plating melts at turbine temperatures. You need high-temperature coatings or specific anti-seize compounds compatible with the alloy.
- Material Hardness: Galling often happens when the nut and bolt are the exact same hardness. Using a nut that is slightly different in hardness grade can prevent the materials from bonding.
- Thread Quality: Smooth, rolled threads gall less frequently than rough, cut threads. Our Quality and Tech teamensures premium thread finish to ease installation and removal.
The Cyclone Bolt Advantage: Speed and Location
Power plants operate on tight schedules. When a turbine is offline (an outage), every hour costs the utility company revenue.
If you discover damaged bolting during an inspection, you cannot wait six weeks for a shipment from overseas. You need parts now.
Located in Houston, Texas
Cyclone Bolt is strategically positioned in Houston, the industrial logistics hub of the United States.
- We have access to the best raw material stock in the country.
- Our manufacturing facility is geared for rapid response.
- We can machine custom studs, double-end studs, and heavy hex bolts to print and ship them immediately to power plants across the region.
Protect Your Turbine Assets
Bolts are inexpensive compared to the turbine they hold together. Yet, purchasing low-quality or incorrect fasteners is the most expensive mistake a plant can make.
Don’t let a $50 bolt destroy a $50 million turbine.
By choosing the correct high-temperature alloys (like B16), understanding the risks of creep, and partnering with a certified manufacturer like Cyclone Bolt, you ensure your plant runs efficiently and safely.
Ready to secure your next outage? Contact Cyclone Bolt today. Let our technical team in Houston provide the high-performance fasteners your power generation facility demands.
Frequently Asked Questions
1. What is the difference between ASTM A193 B7 and B16 bolts? The main difference is temperature resistance. Grade B7 is a chromium-molybdenum steel rated for temperatures up to approximately 800°F. Grade B16 adds vanadium to the alloy, which increases its heat resistance and stability, making it suitable for temperatures up to 1,100°F, common in steam turbines.
2. Why do steam turbine bolts come loose over time? Steam turbine bolts loosen due to a phenomenon called “stress relaxation.” High heat causes the metal’s atomic structure to rearrange slightly, reducing the tension (preload) in the bolt even if the nut hasn’t turned. This leads to a loss of clamping force and potential leaks.
3. What is bolt creep in power generation? Bolt creep is the slow, permanent deformation (stretching) of a fastener under constant stress and high heat over a long period. If undetected, creep can lead to “creep rupture,” where the bolt suddenly snaps, potentially causing catastrophic equipment failure.
4. How does API Spec Q1 certification benefit power plants? Although API Spec Q1 is an oil and gas standard, it benefits power plants by ensuring the highest level of quality management. It requires strict control over manufacturing, heat treatment tracking, and material traceability. This ensures that critical turbine bolts do not have hidden defects.
5. What prevents bolts from seizing in high-heat applications? To prevent seizing (galling), use bolts with smooth, rolled threads rather than cut threads. Additionally, applying high-temperature anti-seize compounds and ensuring the nut and bolt have slightly different hardness levels can prevent the metals from cold-welding together during removal.
